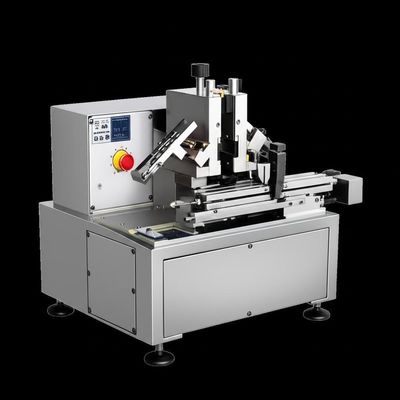

Electronic Component Lead Forming Lead Shaping Component Machine Operating Temperature Range 0°C 40°C Lead Shaping Process

Product Description:

The Component Lead Forming Machine is a state-of-the-art semiautomatic device designed specifically for electronic component lead forming applications. Engineered to meet the precise demands of modern electronics manufacturing, this machine offers exceptional accuracy and reliability, making it an indispensable tool for businesses aiming to enhance their production efficiency and product quality.

At the core of this machine's functionality is its ability to handle a wide range of lead lengths, from as short as 5mm up to 50mm. This versatility ensures that it can accommodate various component sizes and specifications, catering to diverse electronic assembly requirements. Whether you are working with small-scale components or larger leads, the Component Lead Forming Machine provides consistent and precise shaping, which is critical for ensuring optimal soldering and assembly performance.

One of the standout features of this product is its remarkable precision, boasting a tolerance level of ±0.05mm. Such high accuracy is essential in electronic manufacturing, where even minute deviations can lead to assembly issues or compromised device functionality. The Component Lead Shaping System ensures that every lead is formed exactly to specification, reducing the risk of errors and rework, and ultimately saving time and costs.

As a semiautomatic system, this machine strikes the perfect balance between manual control and automated efficiency. Operators can easily set up and adjust the machine parameters to suit specific production needs, while the automated processes handle the repetitive lead forming tasks with consistency and speed. This combination enhances productivity without sacrificing the flexibility required for handling different component types or custom lead configurations.

The Component Lead Forming Machine is part of a broader category known as Automated Lead Forming Machines, which are designed to streamline the lead shaping process in electronic component manufacturing. By integrating advanced mechanical design with user-friendly controls, this system reduces operator fatigue and minimizes the potential for human error, leading to higher throughput and improved product quality.

Durability and reliability are fundamental aspects of this machine’s design. Built with high-quality materials and components, it is engineered to withstand the rigors of continuous production environments. To provide peace of mind and ensure long-term operational performance, the Component Lead Forming Machine comes with a comprehensive 1-year warranty. This warranty underscores the manufacturer’s confidence in the machine’s quality and offers users assurance against any manufacturing defects or operational issues during the initial period of use.

Incorporating the Component Lead Shaping System into your production line can significantly enhance the efficiency and consistency of electronic component lead forming. It is ideal for various industries including electronics manufacturing, automotive electronics, telecommunications, and any sector where precise lead forming is a critical process. The machine’s adaptability and precision make it a valuable addition to any facility aiming to maintain high standards in component assembly.

Overall, the Component Lead Forming Machine is a reliable, precise, and versatile semiautomatic solution that meets the stringent demands of electronic component lead forming. Its ability to handle a broad lead length range, combined with its exceptional precision and robust warranty, makes it an excellent investment for manufacturers seeking to improve their lead forming processes. By choosing this Automated Lead Forming Machine, you are investing in a proven Component Lead Shaping System that enhances productivity, quality, and operational efficiency in your manufacturing workflow.

Features:

• Product Name: Component Lead Forming Machine
• Power Consumption: 500W
• Dimensions: L1500 x W1000 x H1500mm
• Application: Electronic Component Lead Forming
• Material Compatibility: Copper, Aluminum, Alloy Leads
• Lead Length Range: 5mm - 50mm
• Advanced Lead Shaping Component Machine for precise lead forming
• Efficient Lead Forming Equipment Machine designed for high productivity
• Durable Lead Forming Equipment Machine suitable for various metals

Technical Parameters:

Applications:

The Precision Lead Forming Machine is an essential piece of equipment designed for a variety of industrial and manufacturing applications where accuracy and efficiency are paramount. Operating on a standard power supply of 220V / 50Hz and consuming only 500W of power, this machine is both energy-efficient and reliable for continuous use in production lines. Its compact dimensions (L1500 x W1000 x H1500mm) make it suitable for facilities with limited space while still providing robust performance.

This Lead Shaping Component Machine is ideal for scenarios that require precise manipulation of electronic component leads. With a lead length range of 5mm to 50mm and an exceptional precision tolerance of ±0.05mm, it ensures consistent, high-quality lead forming that meets the stringent requirements of modern electronics manufacturing. This makes it perfect for use in the assembly of printed circuit boards (PCBs), where accurate lead shaping is critical to the stability and functionality of electronic devices.

The Electronic Lead Forming Device is widely used in automated production lines in the electronics industry, including the manufacture of semiconductors, resistors, capacitors, and other electronic components. Its ability to handle a variety of lead sizes and shapes with high precision makes it a versatile tool that can significantly improve throughput and reduce manual labor. This machine is well-suited for environments such as electronics factories, component assembly workshops, and research and development labs where prototype components are shaped before mass production.

Additionally, this component lead forming machine is advantageous during quality control and testing phases, where precise lead dimensions are crucial to ensure proper component fit and function. The device's consistent precision and reliable performance help minimize defects and rework, ultimately saving time and cost in the manufacturing process.

In summary, the Precision Lead Forming Machine, also known as a Lead Shaping Component Machine or Electronic Lead Forming Device, is indispensable for any production scenario requiring high-accuracy lead forming. Its combination of compact size, energy efficiency, and precise control makes it an excellent choice for modern electronic component manufacturing and assembly applications.

Packing and Shipping:

The Component Lead Forming Machine is carefully packaged to ensure it arrives in perfect condition. Each unit is securely wrapped with protective materials and placed inside a sturdy, custom-designed carton. The packaging includes foam inserts to prevent any movement during transit and to protect sensitive components from damage.

For shipping, the machine is palletized and shrink-wrapped to provide additional stability and protection. We work with reliable carriers to offer timely and safe delivery, with tracking available for all shipments. Special handling instructions are included to ensure the product is treated with care throughout the shipping process.

FAQ:

Q1: What types of components can the Component Lead Forming Machine handle?

A1: The machine is designed to handle a wide range of electronic components, including axial leads, radial leads, and various other leaded components commonly used in PCB assembly.

Q2: What is the maximum lead diameter the machine can process?

A2: The Component Lead Forming Machine can process leads with a diameter of up to 3.5mm, accommodating most standard component leads used in electronic manufacturing.

Q3: How fast can the Component Lead Forming Machine operate?

A3: The machine features an adjustable speed setting, capable of processing up to 60 components per minute, depending on the lead size and forming requirements.

Q4: Is the machine compatible with automated production lines?

A4: Yes, the machine is designed for easy integration into automated assembly lines, featuring standard interfaces for synchronization with other production equipment.

Q5: What are the power requirements for operating the Component Lead Forming Machine?

A5: The machine operates on a standard 220V power supply with a consumption of approximately 500W, suitable for most industrial environments.
